Engine oil explained

Choosing the correct engine oil for your motorhome is not just a matter of picking the cheapest bottle off the shelf. It is the lifeblood of your engine, responsible for lubricating moving parts, cooling the system, and preventing a catastrophic failure while you are miles from home. Understanding what the numbers and letters on the bottle actually mean will save you a lot of money and stress in the long run. Many owners simply pour in whatever they have to hand, but modern engines are highly sensitive machines that require very specific fluids to operate correctly.

The primary function of engine oil is to create a microscopic film between metal components that are moving past each other at thousands of revolutions per minute. Without this protective layer, the friction would generate enough heat to weld the engine solid within seconds. Beyond lubrication, the oil also cleans away microscopic metal shavings and soot, suspending them in the fluid until they are trapped by the oil filter. It also helps to seal the piston rings and prevents internal corrosion.

Decoding viscosity and grades

When you look at a bottle of oil, the most prominent feature will be a sequence of numbers and letters, such as 5W30 or 10W40. This is the SAE viscosity grade, which tells you how thick the oil is at different temperatures. Viscosity is simply a measure of a fluids resistance to flow. A high viscosity fluid like treacle flows slowly, while a low viscosity fluid like water flows quickly. In an engine, you need an oil that is thin enough to flow quickly when the engine is cold, but thick enough to maintain a protective film when the engine is hot.

The "W" in these grades stands for Winter, not weight as many people assume. The number preceding the W indicates the oils viscosity at low temperatures. A lower number, such as 0W or 5W, means the oil will remain relatively thin in freezing conditions, allowing the oil pump to circulate it quickly to the top of the engine immediately after starting. The second number indicates the viscosity at operating temperature, usually around 100 degrees Celsius. A 30 or 40 rating means the oil will not thin out too much when hot, ensuring it still provides adequate protection under load.

Mineral versus synthetic oils

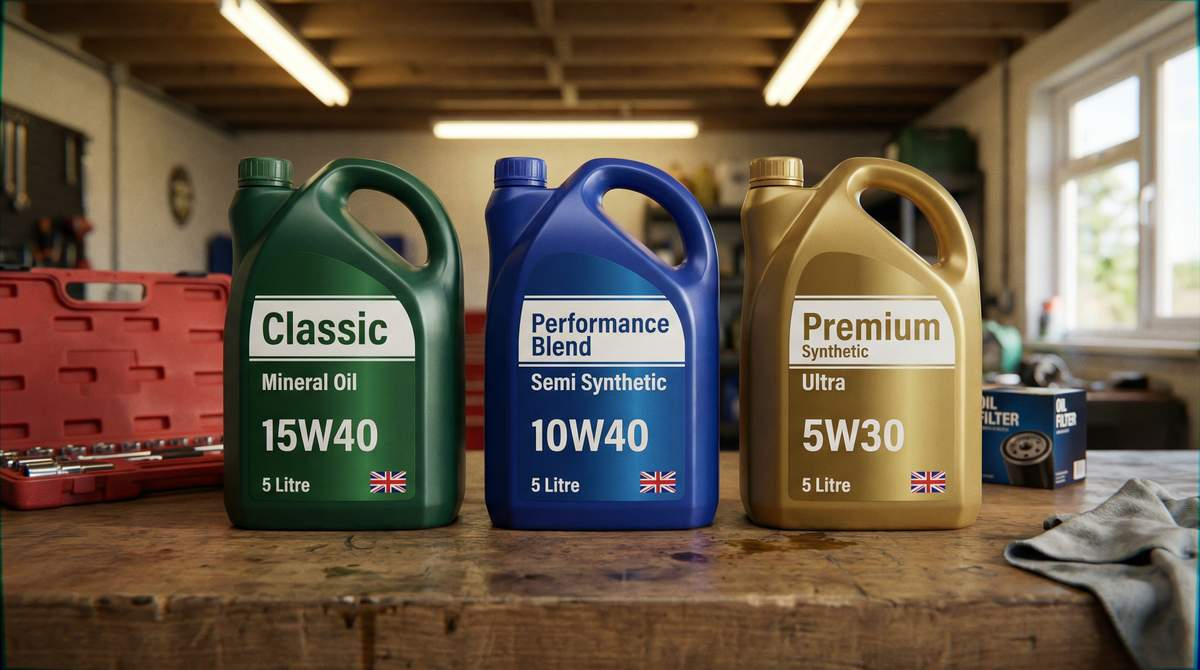

The base oil used to create the lubricant falls into three main categories: mineral, semi synthetic, and fully synthetic. Mineral oil is refined directly from crude oil and is the oldest, cheapest technology. It breaks down relatively quickly under heat and pressure, making it unsuitable for modern motorhome engines, though it may still be used in classic vehicles. Semi synthetic oil is a blend of mineral and synthetic bases, offering a middle ground in terms of price and performance. It provides better protection and longevity than mineral oil and is often recommended for older diesel engines, such as the early 2.8 litre units found in many older motorhomes.

Fully synthetic oil is chemically engineered in a laboratory to provide the highest level of performance. It contains fewer impurities, flows better at extreme temperatures, and resists breaking down over long periods. Almost all modern Euro 5 and Euro 6 motorhome engines require fully synthetic oil. These advanced oils also contain specific additive packages designed to protect modern emissions equipment. For example, many newer diesel engines require a "Low SAPS" oil, which produces less ash when burned, preventing the diesel particulate filter from becoming clogged prematurely.

The dangers of underfilling

Running an engine with too little oil is one of the fastest ways to destroy it. The oil pump sits at the bottom of the sump, drawing oil up and distributing it throughout the engine. If the level drops too low, the pump may draw in air instead of oil, especially when cornering or driving up a steep hill in a heavy motorhome. This momentary loss of oil pressure means metal components are suddenly rubbing against each other without lubrication. The resulting friction generates immense heat, causing rapid wear to the crankshaft bearings, camshafts, and piston rings.

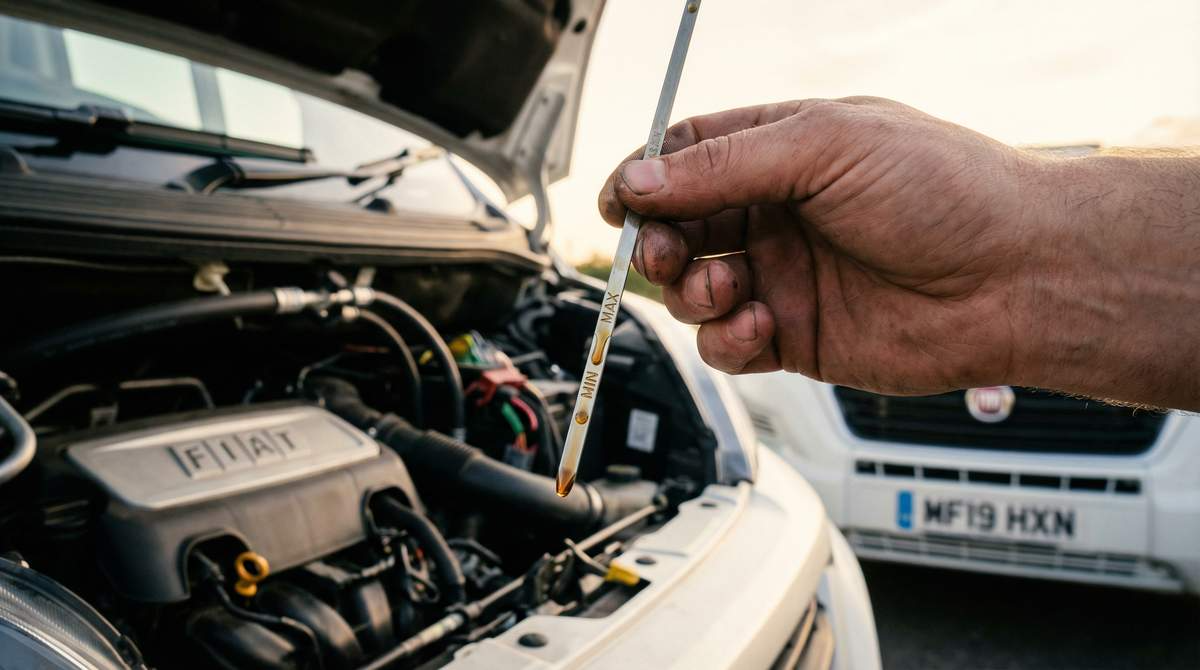

If you hear a ticking or knocking sound from the engine, or if the red oil pressure warning light illuminates on the dashboard, you must stop the vehicle immediately. Continuing to drive, even for a short distance, will almost certainly result in catastrophic engine failure. Even if the level is only slightly low, the remaining oil has to work harder, running hotter and degrading faster. It is essential to check the level regularly using the dipstick, ensuring the vehicle is parked on level ground and the engine has been switched off for at least five minutes to allow the oil to drain back into the sump.

Why overfilling is just as bad

While underfilling is obviously dangerous, many people incorrectly assume that adding a little extra oil will provide better protection. In reality, overfilling can be just as destructive. The crankshaft sits just above the oil level in the sump, spinning at high speed. If the oil level is too high, the crankshaft will strike the surface of the oil, whipping it into a foam. This aerated oil is full of tiny air bubbles, which are compressible and provide terrible lubrication. The oil pump will circulate this foam through the engine, leading to the same friction and wear problems as having too little oil.

Furthermore, the excess oil increases the pressure inside the crankcase. This pressure will find the weakest point to escape, which usually means blowing out the main engine seals, resulting in significant oil leaks. The excess pressure can also force oil up past the piston rings and into the combustion chamber, where it will be burned. This produces thick blue smoke from the exhaust and can quickly destroy the catalytic converter and diesel particulate filter. If you accidentally overfill your engine, do not start it. You must drain the excess oil from the sump plug before driving.

Choosing the right oil for your vehicle

The only reliable way to know which oil your motorhome needs is to consult the owners handbook. You cannot guess the correct specification based on the age or size of the engine. For example, a modern Fiat Ducato Euro 6 engine typically requires a 0W30 fully synthetic oil that meets the ACEA C2 specification. Using a different grade, even a high quality 5W40, could void your warranty and damage the emissions system.

It is always wise to carry a spare litre of the correct oil in your motorhome when travelling. Finding the exact specification you need at a rural petrol station or foreign supermarket can be incredibly difficult, and mixing different types of oil should be avoided unless it is an absolute emergency. By understanding what your engine needs and checking the level regularly, you ensure your motorhome remains reliable for years of adventures.
