Turbo, EGR and DPF: How the Modern Motorhome Diesel Really Works

Modern motorhomes are heavy, complex vehicles that rely on increasingly sophisticated diesel engines to move them. We expect our Fiat Ducatos, Peugeot Boxers, and Ford Transits to haul three and a half tonnes up an Alpine pass, while sipping fuel and emitting cleaner air from the exhaust than what goes into the intake. It is an engineering marvel, but it relies on three critical components working in perfect harmony: the turbocharger, the Exhaust Gas Recirculation (EGR) valve, and the Diesel Particulate Filter (DPF).

Understanding how these three systems interact is not just for mechanics. For a motorhome owner, knowing what happens under the bonnet dictates how you should drive, how you should maintain the vehicle, and why using a motorhome solely for short local trips is a fast track to an expensive garage bill. Let us break down exactly what these components do, why they fail, and how to keep them healthy.

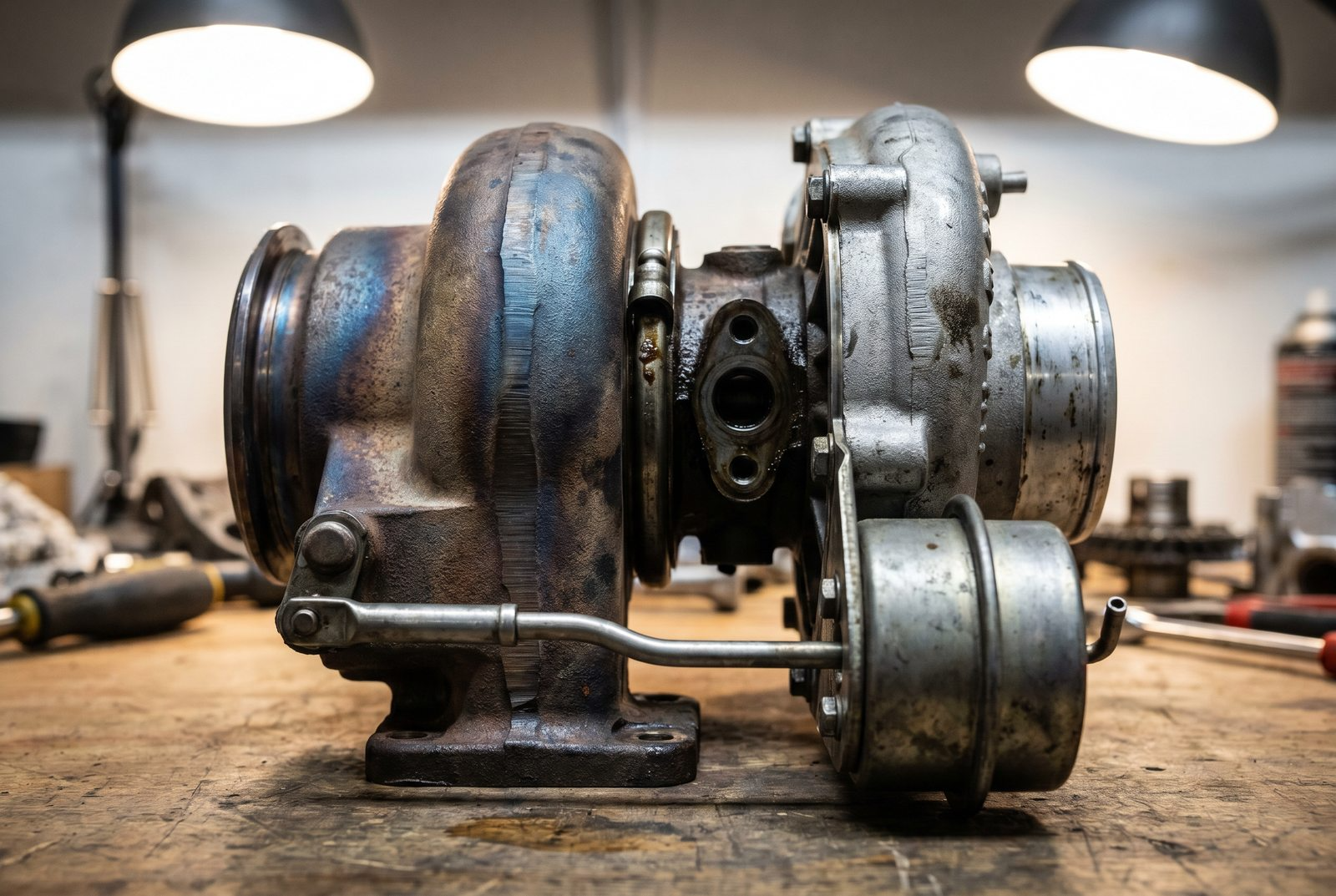

The Turbocharger: Forced Induction for Heavy Lifting

A diesel engine needs massive amounts of air to generate the torque required to move a heavy motorhome. The turbocharger provides this by forcing compressed air into the engine cylinders. Unlike a supercharger, which is driven by a belt attached to the engine, a turbocharger is powered by the kinetic energy of the exhaust gases leaving the engine. The hot exhaust gas spins a turbine wheel, which is connected via a central shaft to a compressor wheel. As the turbine spins—sometimes at speeds up to 250,000 rpm—the compressor draws in fresh air, pressurises it, and forces it into the intake manifold.

Modern motorhome diesels almost exclusively use variable-geometry turbochargers. These feature adjustable vanes inside the turbine housing that alter the angle and speed of the exhaust gas hitting the turbine wheel. At low engine speeds, the vanes close slightly to accelerate the exhaust gas, spooling the turbo up quickly to eliminate "turbo lag." At higher speeds, they open to allow maximum exhaust flow. The central shaft connecting the two wheels spins in a bearing that is lubricated, and cooled, by the engine oil. This is why allowing a motorhome engine to idle for a minute after a long, hard motorway run is crucial; switching it off immediately stops the oil flow, causing the oil left in the blazing hot turbo bearing to bake into hard carbon deposits.

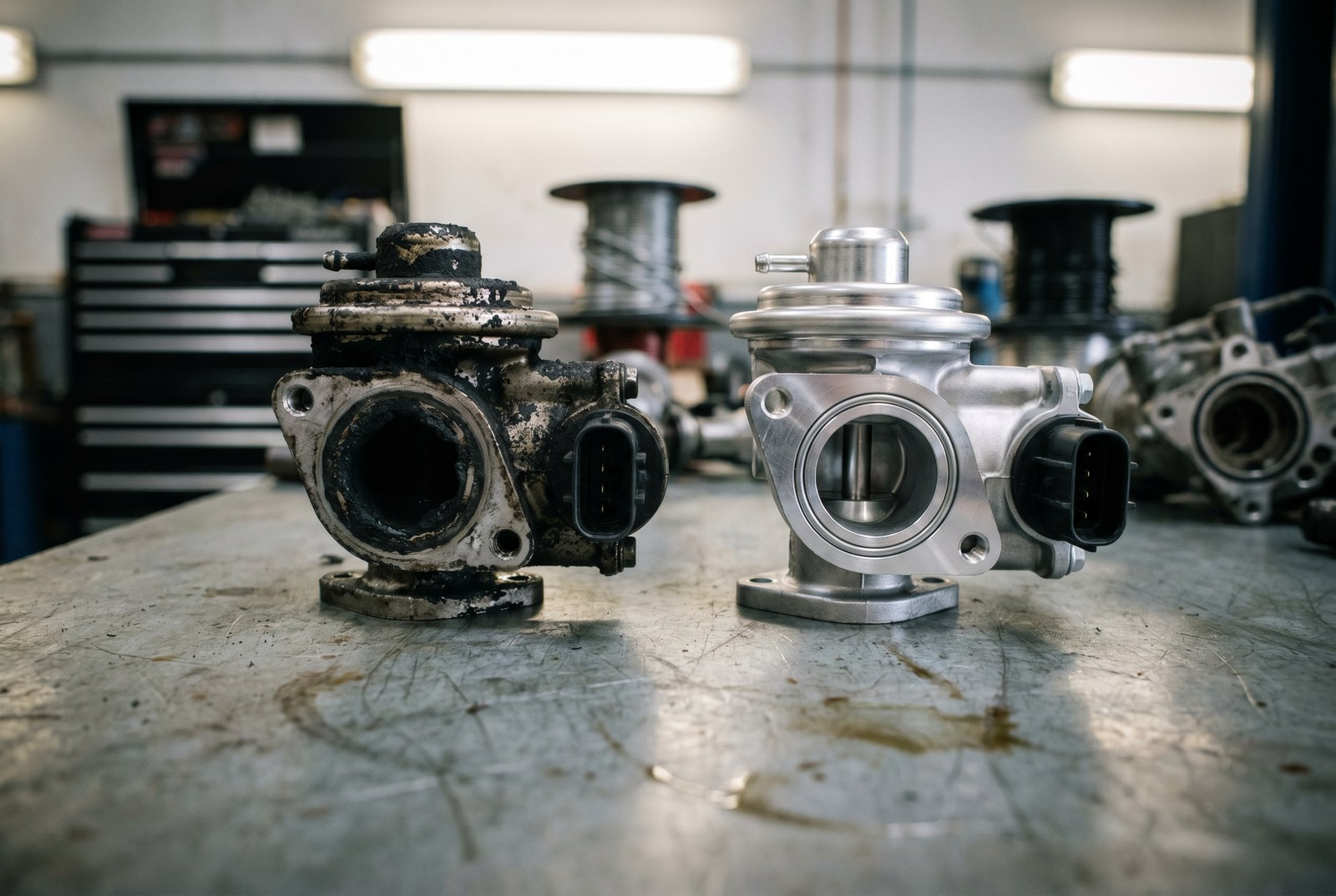

The EGR Valve: Cooling the Combustion

While the turbocharger is busy cramming air into the engine to create power, the EGR valve is tasked with managing the chemical consequences of that power. Diesel engines run lean, meaning they use an excess of air. When diesel fuel burns in this oxygen-rich environment at extremely high temperatures, the nitrogen and oxygen in the air react to form nitrogen oxides (NOx). NOx is a toxic pollutant responsible for smog and respiratory problems, and reducing it is a primary goal of modern emissions standards.

The Exhaust Gas Recirculation valve solves this by siphoning a metered portion of the exhaust gases and routing them back into the engine intake. Because exhaust gas has already been burned, it contains very little oxygen and acts as an inert gas. Mixing this inert gas with the fresh intake air lowers the peak combustion temperature inside the cylinder. Lower temperatures mean significantly less NOx is produced. The engine control unit constantly monitors sensors to determine exactly when to open the EGR valve—typically during steady cruising—and when to close it for maximum power under heavy acceleration.

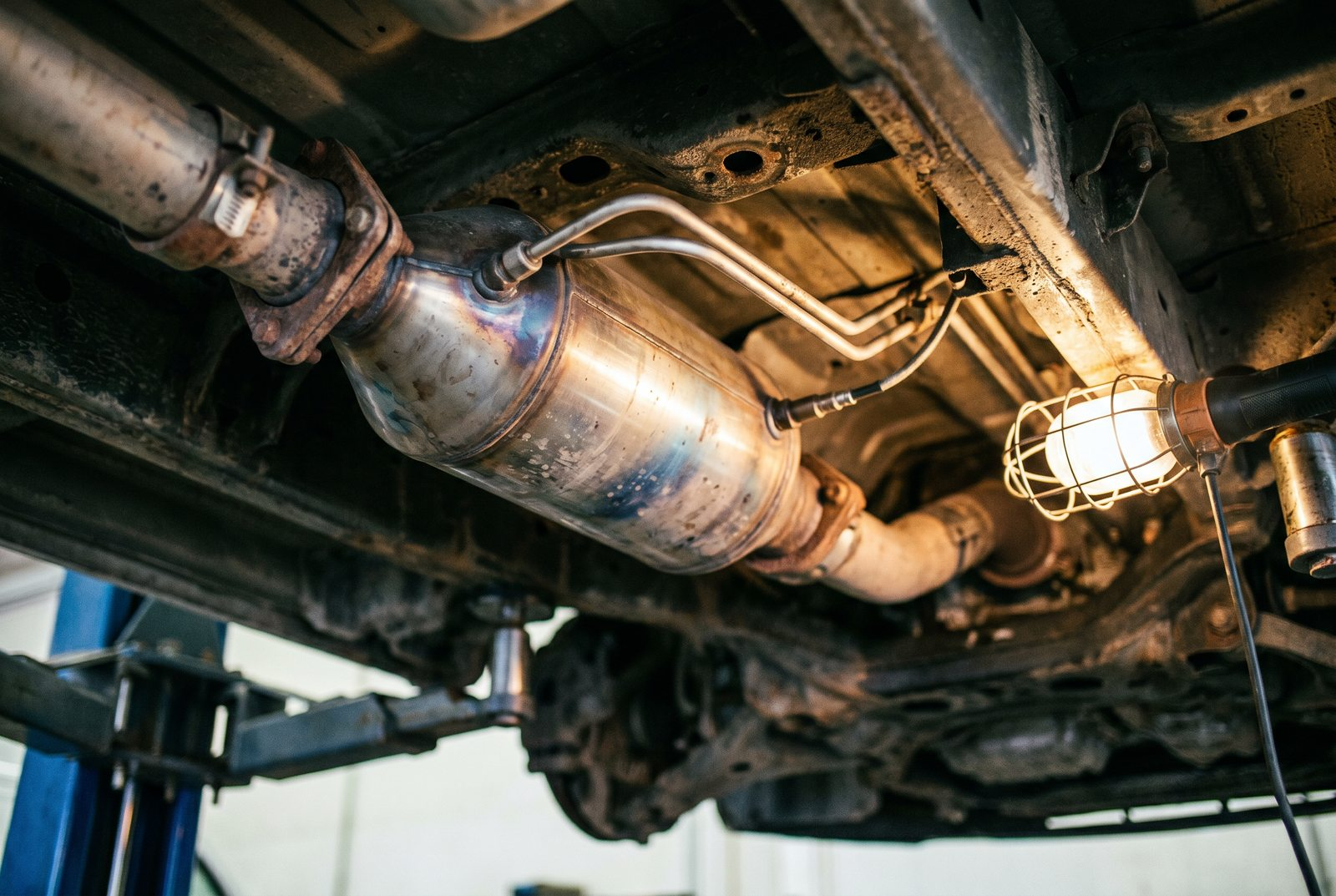

The DPF: Catching the Soot

Lowering combustion temperatures via the EGR valve successfully reduces NOx, but it creates a secondary problem. Cooler combustion is less efficient, which leads to an increase in unburned fuel particles, commonly known as soot. To prevent this soot from entering the atmosphere, modern diesel exhausts are fitted with a Diesel Particulate Filter (DPF). The DPF acts as a physical trap, capturing the microscopic soot particles as the exhaust gas passes through a porous ceramic honeycomb structure.

A DPF is highly effective, but it has a finite capacity. Just like a vacuum cleaner bag, it eventually fills up with soot and must be emptied. Because you cannot simply remove and empty a DPF, the vehicle must clean the filter itself by incinerating the trapped soot, turning it into a tiny amount of harmless ash. This incineration process is known as regeneration, and it requires exhaust temperatures to reach roughly 600 degrees Celsius. Achieving and maintaining this temperature is where many motorhome owners unknowingly run into serious trouble.

Passive vs Active Regeneration

There are two ways a motorhome achieves the heat required to clean its DPF. The first is passive regeneration. This happens naturally when the vehicle is driven under sustained load—such as cruising at 60 mph on a motorway or climbing a long gradient. The engine works hard enough that the exhaust gases naturally reach the 600-degree threshold, and the soot is quietly burned away without any intervention from the vehicle's computer or the driver.

If the motorhome is not driven hard enough to trigger passive regeneration, the soot level inside the DPF continues to rise. Once sensors detect that the filter is becoming restricted, the engine control unit initiates active regeneration. To artificially raise the exhaust temperature to the required 600 degrees, the engine injects a small amount of extra diesel late in the combustion cycle. This unburned fuel travels into the exhaust system and ignites inside the oxidation catalyst just ahead of the DPF, creating a furnace-like heat that incinerates the soot. You might notice the engine cooling fans running loudly, a slightly raised idle speed, or a hot, acrid smell from the exhaust while this is happening.

Why Short Journeys Kill Diesel Particulate Filters

The fundamental weakness of the DPF system is its reliance on heat and time. When you start a cold diesel engine, it runs rich and produces a large amount of soot. If you only drive the motorhome a few miles to a local storage yard, to a nearby supermarket, or to shuffle it around a driveway, the exhaust never gets hot enough for passive regeneration. The DPF simply acts as a sponge, soaking up heavy soot loads from repeated cold starts.

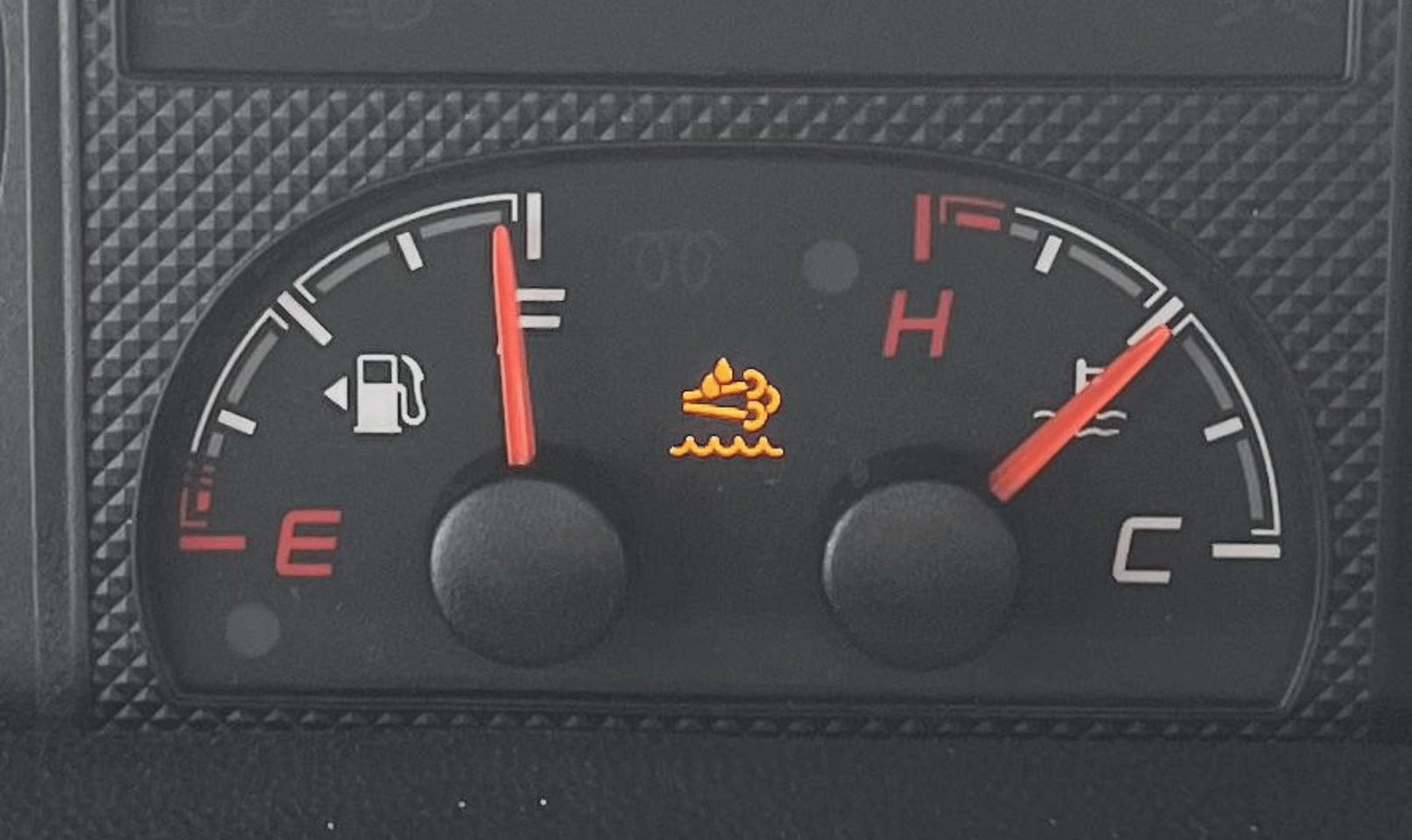

Eventually, the engine computer will attempt an active regeneration. However, active regeneration takes time—often 15 to 20 minutes of uninterrupted driving. If you reach your destination and switch the engine off while an active regeneration is in progress, the process is aborted. The unburned soot remains in the filter. If this happens repeatedly, the DPF becomes so blocked that the vehicle will illuminate a warning light and eventually drop into "limp mode" to protect the engine. At this stage, taking it for a long drive will not fix it; the vehicle requires a forced regeneration via a diagnostic computer at a garage, or worse, a physical removal and chemical clean of the filter.

Keeping the System Healthy

Maintaining the health of your turbo, EGR, and DPF systems comes down to how you use and service the vehicle. Motorhomes are designed to travel long distances, and their engines thrive on heat and load. Taking the motorhome for a sustained run of at least 40 minutes on a dual carriageway every few weeks is the most effective way to ensure passive regeneration occurs and the DPF remains clear. If you notice the signs of an active regeneration taking place when you arrive at a campsite, it is wise to leave the engine running for a few minutes to allow the cycle to complete.

Servicing is equally critical. You must use the correct specification of low-SAPS (Sulphated Ash, Phosphorus, and Sulphur) engine oil. Standard oils contain additives that produce incombustible ash when burned; this ash permanently blocks the DPF and cannot be removed by regeneration. Furthermore, ignoring a blocked EGR valve or a failing turbo hose will cause the engine to run excessively rich, producing more soot than the DPF can handle. Treat your motorhome diesel as the heavy-duty, long-distance machine it was engineered to be, and these complex systems will provide years of reliable service.
