A useful guide to AdBlue for your motorhome

As you may know, AdBlue is an essential element of many vehicles. It helps to reduce harmful emissions and keep your motorhome running cleanly whilst complying with environmental regulations. However, like any system, it isn’t without its problems! AdBlue-related faults can cause warning lights to turn on, reduce the engine’s performance, and even stop the motorhome from starting altogether…

In this article we’ll discuss what AdBlue is, take a look at some of the most common AdBlue problems faced by motorhome owners, and also tell you how you can sort these issues out.

AdBlue is a clear, non-toxic fluid made up of 32.5% high-purity urea and 67.5% deionised water. It’s used in diesel vehicles that are equipped with Selective Catalytic Reduction (SCR) technology - a system designed to reduce harmful nitrogen oxide (NOx) emissions produced by diesel engines. When AdBlue is injected from its tank into the exhaust system it reacts with the NOx gases in the catalytic converter and converts them into harmless nitrogen and water vapour, which is then safely released into the atmosphere. Effectively, it reduces the NOx emissions by up to 90%… It’s a good thing to have, and apart from the cost of filling it up now and then, and any issues developing, there aren’t really any disadvantages to it being included in your motorhome’s system (apart from it needing to be immediately wiped off the paintwork with water if you spill any, to prevent any corrosion!)

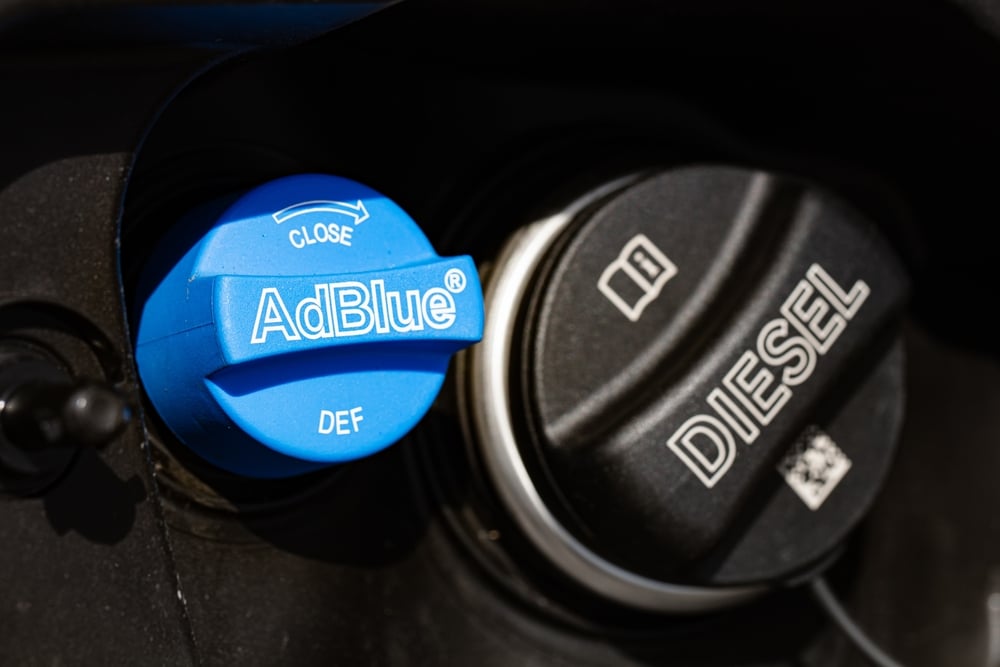

If you are not sure if your motorhome requires AdBlue, you can check the handbook or ask a dealer, and also look for a separate filler cap for the AdBlue tank (it’s blue) which may be under the bonnet or near the fuel filler.

If your motorhome dates from roughly 2015 it’ll likely have it, so you’ll need to check its levels periodically, and keep an eye on the AdBlue indicator lights on the dash. You can also retrofit an AdBlue system to many older motorhomes.

Let’s have a look now at some of the most common issues that can occur…

Clogging and crystallisation

One of the most frequent problems found with AdBlue systems is clogging or crystallisation, as AdBlue can leave behind white, chalky deposits if it dries out. This usually happens around the injectors, filler cap or inside the lines and tank. Over time, these crystals can cause blockages, disrupting the flow of AdBlue and affecting emissions control.

How to sort this:

You can look at the injectors and pipework for any signs of crystal build-up. Cleaning these with warm water can dissolve minor deposits, but in more severe cases the affected parts may need to be replaced. Regularly using the motorhome and avoiding long periods of inactivity can help prevent any crystallisation occurring.

Contamination

AdBlue is highly sensitive to contaminants such as fuel, oil, dirt and even tap water and any contamination may trigger dashboard warnings. Also, using anything other than high-grade AdBlue could damage the SCR system and lead to the need for repairs - which could be costly.

How to sort this:

Be sure to drain and flush the AdBlue tank completely if any contamination is suspected, and refill it with fresh, certified AdBlue. Make sure only clean, sealed containers and designated AdBlue pumps are used during your refills, and avoid using makeshift funnels or equipment that could introduce debris into the system.

Freezing in cold weather

AdBlue can freeze at temperatures below -10°C. While some modern vehicles are equipped with heated tanks and lines to manage this, extremely cold conditions or system malfunctions can still lead to the AdBlue freezing.

How to sort this:

If the AdBlue has frozen, you may need to wait for the ambient temperature to rise or move the vehicle to a warmer location. If the heater within the system is not functioning, it may require diagnostic testing and a possible replacement. It’s wise to check for any stored fault codes using a diagnostic tool.

Incorrect levels used

Having too little AdBlue can cause the vehicle to go into limp mode, or the dash could start to display other warning messages. Ultimately it may prevent the motorhome from starting or continuing to run, as it reduces the engine’s power to limit its emissions.

How to sort this:

Always monitor your AdBlue levels using the motorhome’s onboard system and top it up when required. Avoid filling beyond the maximum line, however. If a low level has been reached, a reset via diagnostics may be needed after the correct amount has been added. Regularly topping up with AdBlue before it gets too low is a good preventative measure to anything going wrong in this area. This is a key point, however - don’t put it in the diesel tank, just the AdBlue tank! Diesel and AdBlue most definitely do not mix…

Pump and sensor failures

Like many modern vehicle systems, the AdBlue system relies on various sensors and a small pump to function properly. These components can fail due to age, contamination, electrical issues, or perhaps other mechanical faults. Common symptoms include persistent AdBlue warnings on the dash, incorrect level readings, or the motorhome ultimately failing to start.

How to sort this:

A full diagnostic scan is usually the first step. This will pinpoint whether a pump, level sensor or temperature sensor has failed. Replacing these parts can be a fiddly job, especially as many components are located in or around the AdBlue tank so it’s often best carried out by a mechanic unless you’re confident with vehicle maintenance.

AdBlue is a pretty clever and eco-friendly system, but it does need a little care and attention! If you take the time to understand how these common issues can arise, and how to identify and repair them, you’ll hopefully avoid any unnecessary stress and expense, and you’ll keep your motorhome performing at its best.

Remember, though - if you’re unsure or uncomfortable with any AdBlue-related repair, don’t hesitate to consult a mechanic.
